QUESTION 49
Choose the correct answer
What is a ‘control operator’?

QUESTION 50
Choose the correct answer.

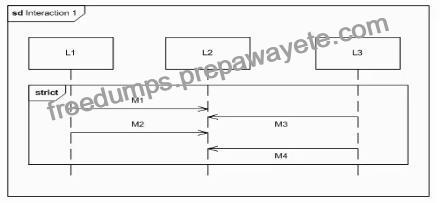

Given the following diagram:

Which message ordering is valid?

QUESTION 51
Choose the correct answer

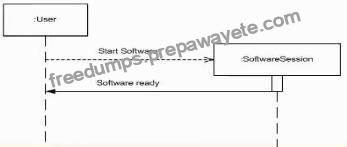

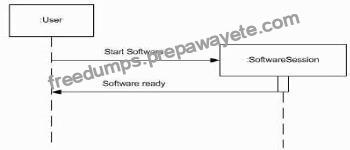

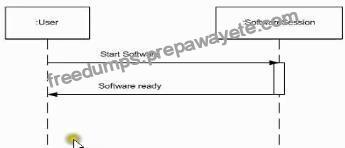

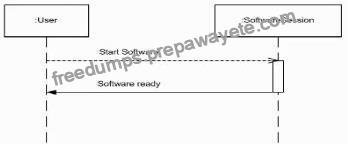

A sequence diagram depicts the beginning of a user’s session with a piece of interactive software . The diagram must show that the -Software Session is created by some activity of the .User.
Which sequence diagram fragment expresses this?
A)

B)

C)

D)

QUESTION 52
Choose the correct answer
What is an effective and efficient approach to project modeling standards and conventions?

QUESTION 53
Choose the correct answer.
When is it possibly useful to create property-specific types?

QUESTION 54
Choose the correct answer.
Block 1 has a value property ‘a’ part 1. typed by Block! sends the message Ml If a>0; otherwise it sends message M2.

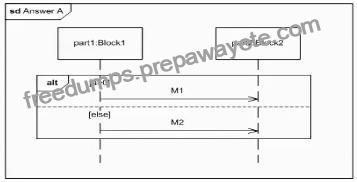

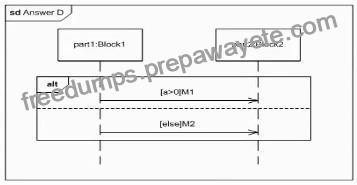

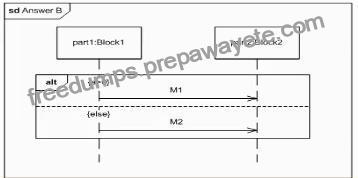

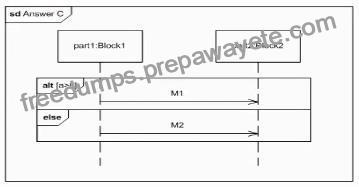

Which diagram depicts this scenario?
A)

B)

C)

D)

QUESTION 55
Choose the correct answer.
What is the relationship between objective functions and measures of effectiveness (MOEs)?

QUESTION 56
Choose the correct answer.
Which option correctly describes the effect of an object flowing into and out of a data store?
A)

B)

C)

D)

QUESTION 57
Choose the correct answer.
Where can a StateInvariant appear?

QUESTION 58
Choose the correct answer.

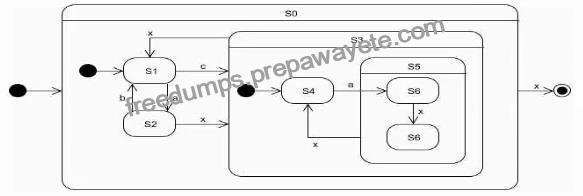

Given the following statement machine, and assuming that it starts from initialization:

What is the shortest event sequence that will place this state machine in its final state?

QUESTION 59
Choose the correct answer.

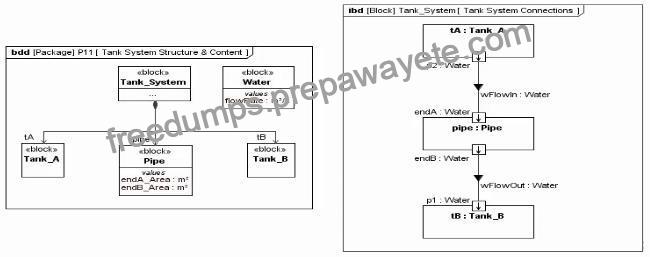

A system engineer has created the following model of a tank system composed of two tanks and a pipe connecting them:

The system engineer wants to mathematically relate the flow of water through the pipe using the following mass conservation equation: Tank_System wFlowin flowRate * Tank_System pipe endA_Area = Tank_System wFlowOut flowRate * Tank_System pipe endB_Area How would the system engineer model this in SysML?

QUESTION 60
Choose the correct answer
What is an efficient way to represent highly reused patterns of interaction on sequence diagrams?

QUESTION 61
Choose the correct answer
In a state machine which behavior can be interrupted by a transition which leaves the current state?

QUESTION 62
Choose the correct answer.

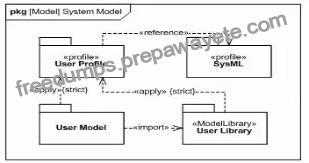

Given the following package diagram depicting profile and model library relationships to a user model.

The User Profile extends SysML with two new stereotypes of Block Hardware and Software.

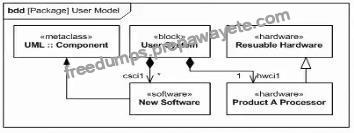

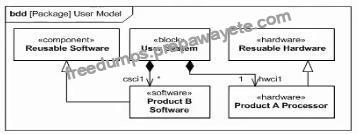

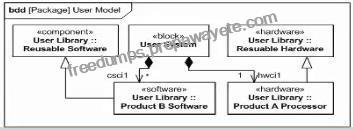

Which bdd fragment is valid, yet does not contain unnecessary or redundant information?
A)

B)

C)

D)

E)

QUESTION 63
Choose the correct answer
Which SysML construct is used in an activity diagram to associate an actor of a use case with the actions that actor performs?

QUESTION 64
Choose the correct answer.
Given the following diagram:

Which diagram is correct?
A)

B)

C)

D)

QUESTION 65
Choose the correct answer
Which diagram fragment validly depicts adding properties to a stereotype?
A)

B)

C)

D)

QUESTION 66
Choose the correct answer.
Assume the following state machine fragment Is In the A-State when the event evC arrives.

What is the order of behaviors that are executed after evj arrives?

QUESTION 67
Choose the correct answer.
In the following bdd, A delegates both of its ports to B:

Which ibd correctly represents this?
A)

B)

C)

D)
