[Mar-2024] ACA Campus Access Associate HPE6-A85 Exam Practice Test Questions Dumps Bundle! [Q32-Q48]

Explanation
OAlOps is a feature of Aruba Central that uses artificial intelligence and machine learning to identify recommended steps to resolve network health issues and allows you to share detailed information with support personnel. OAlOps provides insights into network performance, root cause analysis, anomaly detection, proactive alerts, and automated remediation actions.OAlOps also integrates with Aruba User Experience Insight (UXI) sensors to measure and improve user experience across wired and wireless networks.
References:https://www.arubanetworks.com/assets/ds/DS_ArubaCentral.pdf

Explanation
Profiling is a feature that allows Aruba switches to automatically identify and classify devices connected to them based on various attributes such as MAC address, DHCP options, LLDP information, etc. Profiling can be used to dynamically set the PoE priority on a switch port based on the device type and power requirements.
For example, an IP camera may have a higher PoE priority than a printer or a PC. Profiling can also be used to apply other configuration settings such as VLANs, ACLs, QoS, etc. based on the device profile.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-ove

Explanation
MSTP Multiple Spanning Tree Protocol. MSTP is an IEEE standard protocol for preventing loops in a network with multiple VLANs. MSTP allows multiple VLANs to be mapped to a reduced number of spanning-tree instances. configuration ID consists of two parameters: name and revision. The name is a
32-byte ASCII string that identifies the MSTP region, which is a group of switches that share the same configuration ID and VLAN-to-instance mapping. The revision is a 16-bit number that indicates the version of the configuration ID. By default, the MSTP configuration ID name is set to the switch IMC address, which is a unique identifier derived from the MAC address Media Access Control address. MAC address is a unique identifier assigned to a network interface controller (NIC) for use as a network address in communications within a network segment. of the switch.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/mstp/

Explanation
The command that is used to set a default route to 10.4.5.1 on an Aruba CX switch when in-band management using an SVI is being used is ip route 0.0 0 0/0 10.4.5.1 . This command specifies the destination network address (0.0 0 0) and prefix length (/0) and the next-hop address (10.4.5.1) for reaching any network that is not directly connected to the switch. The default route applies to the default VRF Virtual Routing and Forwarding.
VRF is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. VRFs are typically used to segment network traffic for security, privacy, or administrative purposes. , which is used for in-band management traffic that goes through an SVI Switch Virtual Interface.
SVI is a virtual interface on a switch that allows the switch to route packets between different VLANs on the same switch or different switches that are connected by a trunk link. An SVI is associated with a VLAN and has an IP address and subnet mask assigned to it
https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Ch
2
https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content/Ch

Explanation
The weakness introduced into WLAN environment when WPA2-Personal is used for security is that PMK Pairwise Master Key (PMK) is a key that is derived from PSK Pre-shared Key (PSK) is a key that is shared between two parties before communication begins , which are both fixed. This means that all users who know PSK can generate PMK without any authentication process. This also means that if PSK or PMK are compromised by an attacker, they can be used to decrypt all traffic encrypted with PTK Pairwise Temporal Key (PTK) is a key that is derived from PMK, ANonce AuthenticatorNonce (ANonce) is a random number generated by an authenticator (a device that controls access to network resources, such as an AP), SNonce Supplicant Nonce (SNonce) is a random number generated by supplicant (a device that wants to access network resources, such as an STA), AA Authenticator Address (AA) is MAC address of authenticator, SA Supplicant Address (SA) is MAC address of supplicant using Pseudo-Random Function (PRF). PTK consists of four subkeys: KCK Key Confirmation Key (KCK) is used for message integrity check, KEK Key Encryption Key (KEK) is used for encryption key distribution, TK Temporal Key (TK) is used for data encryption, MIC Message Integrity Code (MIC) key. .
The other options are not weaknesses because:
It uses X 509 certificates generated by a Certification Authority: This option is false because WPA2-Personal does not use X 509 certificates or Certification Authority for authentication. X 509 certificates and Certification Authority are used in WPA2-Enterprise mode, which uses 802.1X and EAP Extensible Authentication Protocol (EAP) is an authentication framework that provides support for multiple authentication methods, such as passwords, certificates, tokens, or biometrics. EAP is used in wireless networks and point-to-point connections to provide secure authentication between a supplicant (a device that wants to access the network) and an authentication server (a device that verifies the credentials of the supplicant). for user authentication with a RADIUS server Remote Authentication Dial-In User Service (RADIUS) is a network protocol that provides centralized authentication, authorization, and accounting (AAA) management for users who connect and use a network service .
The Pairwise Temporal Key (PTK) is specific to each session: This option is false because PTK being specific to each session is not a weakness but a strength of WPA2-Personal. PTK being specific to each session means that it changes periodically during communication based on time or number of packets transmitted. This prevents replay attacks and increases security of data encryption.
It does not use the WPA 4-Way Handshake: This option is false because WPA2-Personal does use the WPA 4-Way Handshake for key negotiation. The WPA 4-Way Handshake is a process that allows the station and the access point to exchange ANonce and SNonce and derive PTK from PMK. The WPA
4-Way Handshake also allows the station and the access point to verify each other’s PMK and confirm the installation of PTK.
References: https://en.wikipedia.org/wiki/Wi-Fi_Protected_Access#WPA_key_hierarchy_and_management
https://www.cwnp.com/wp-content/uploads/pdf/WPA2.pdf

Explanation
Only: Daisy chain plus MAD and ring are the recommended VSF topologies for Aruba switches. They provide high availability and redundancy for the VSF stack. MAD (Multiple Active Detection) is a mechanism to detect and resolve split-brain scenarios in a VSF stack.
References:https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6790/GUID-D6EF042E-EEE

Explanation
Manual provisioning is a method to add switches to Aruba Central without using DHCP or DNS. It requires the user to enter the switch serial number, MAC address, and activation code in Aruba Central, and then configure the switch with the same activation code and Aruba Central’s IP address.
References:https://help.central.arubanetworks.com/latest/documentation/online_help/content/devices/switches/pr

Explanation
Layer 2 MAC authentication is a method of authenticating devices based on their MAC addresses without requiring any client-side configuration or credentials. The switch sends the MAC address of the device to an authentication server such as ClearPass or RADIUS, which checks if the MAC address is authorized to access the network. If yes, the switch grants access to the device based on the assigned role and policies. If no, the switch denies access or redirects the device to a captive portal for further authentication.
References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-ove

Explanation
This configuration script will achieve the task as it follows the guidelines given by the Senior Engineer. It creates VLAN 20 with name Mgmt, adds L3 SVI on VLAN 20 with IP address 10.1.1.10/24, creates LAG 1 with LACP mode active for the uplink, uses VLAN 20 as the native VLAN on the LAG, and ensures that the interfaces are all ON.
References:https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6790/GUID-8F0E7E8B-0F4

Explanation
The correct statement when comparing 5 GHz and 6 GHz channels with identical channel widths is that 5 GHz channels travel different distances and provide different throughputs to clients compared to 6 GHz channels.
This statement reflects the fact that higher frequency signals tend to have higher attenuation Attenuation is a general term that refers to any reduction in signal strength during transmission over distance or through an object or medium . Higher attenuation means that higher frequency signals have shorter range and lower throughput than lower frequency signals. Some facts about this statement are:
5 GHz channels have lower frequency than 6 GHz channels, which means they have lower attenuation than 6 GHz channels.
Lower attenuation means that 5 GHz channels can travel longer distances and provide higher throughputs to clients than 6 GHz channels with identical channel widths.
However, the difference in distance and throughput between 5 GHz and 6 GHz channels may not be significant in indoor environments where there are many obstacles and reflections that affect signal propagation.
The advantage of using 6 GHz channels over 5 GHz channels is that they offer more spectrum availability, less interference, and more non-overlapping channels than 5 GHz channels.
The other options are not correct because:
5 GHz channels travel the same distances and provide different throughputs to clients compared to 6 GHz channels: This option is false because 5 GHz channels do not travel the same distances as 6 GHz channels due to higher attenuation of higher frequency signals.
5 GHz channels travel the same distances and provide the same throughputs to clients compared to 6 GHz channels: This option is false because 5 GHz channels do not travel the same distances or provide the same throughputs as 6 GHz channels due to higher attenuation of higher frequency signals.
5 GHz channels travel different distances and provide the same throughputs to clients compared to 6 GHz channels: This option is false because 5 GHz channels do not provide the same throughputs as
6 GHz channels due to higher attenuation of higher frequency signals.
References: https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-6e
https://www.wi-fi.org/file/wi-fi-alliance-spectrum-needs-study
https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/82068-power-levels.html
https://www.cisco.com/c/en/us/products/collateral/wireless/spectrum-expert-wi-fi/prod_white_paper0900aecd80

Explanation
Multiple Pre-Shared Key (MPSK) is a feature that allows device-specific or group-specific passphrases to securely add headless devices to the WLAN Wireless Local Area Network. WLAN is a wireless computer network that links two or more devices using wireless communication to form a local area network (LAN) within a limited area such as a home, school, computer laboratory, campus, or office building. . MPSK enhances the WPA2 PSK Wi-Fi Protected Access 2 Pre-Shared Key. WPA2 PSK is a method of securing your network using WPA2 with the use of the optional Pre-Shared Key (PSK) authentication, which was designed for home users without an enterprise authentication server. mode by allowing different PSKs for different devices on the same SSID Service Set Identifier. SSID is a case-sensitive, 32 alphanumeric character unique identifier attached to the header of packets sent over a wireless local-area network (WLAN). The SSID acts as a password when a mobile device tries to connect to the basic service set (BSS) – a component of the IEEE
802.11 WLAN architecture. . MPSK passwords can be generated or user-created and are managed by ClearPass Policy Manager12. References:
https://blogs.arubanetworks.com/solutions/simplify-iot-authentication-with-multiple-pre-shared-keys/ 2
https://www.arubanetworks.com/techdocs/ClearPass/6.8/Guest/Content/AdministrationTasks1/Configuring-MPS

Explanation
These commands might help troubleshoot this issue as they check various aspects of the connectivity between the edge switch and the core switch, such as Layer 3 reachability, Layer 2 adjacency, LACP configuration and status, VLAN trunking configuration, and interface status.
References:https://www.arubanetworks.com/techdocs/AOS-CX_10_04/CLI/GUID-8F0E7E8B-0F4B-4A3C-AE7

Explanation

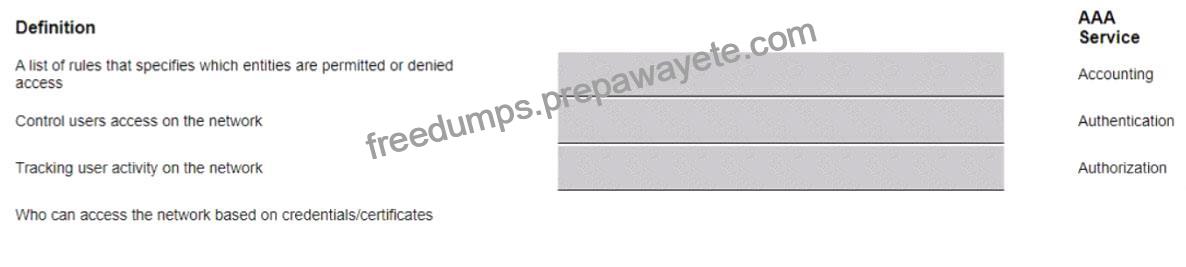

AAA Authentication, Authorization, and Accounting (AAA) Authentication, Authorization, and Accounting (AAA) is a framework that provides security services for network access control . AAA consists of three components:
Authentication: The process of verifying the identity of a user or device that wants to access the network based on credentials such as username and password , certificates , tokens , etc . Authentication can use different protocols such as PAP , CHAP , EAP , RADIUS , TACACS+ , etc .
Authorization: The process of granting or denying access to network resources based on the identity and privileges of a user or device . Authorization can use different methods such as ACLs , RBAC , MAC , DAC , etc .
Accounting: The process of recording and reporting the activities and usage of network resources by users or devices . Accounting can use different formats such as syslog , SNMP , NetFlow , etc .
service. Here is my answer:

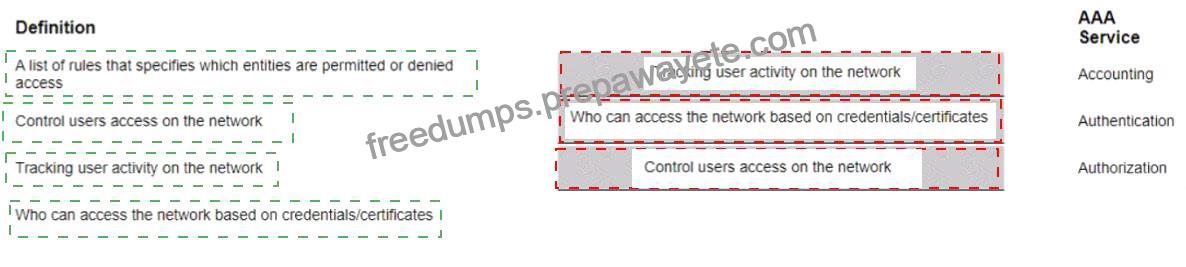

The correct match for each AAA service with its definition is:
Accounting: C. Tracking user activity on the network
Authentication: D. Who can access the network based on credentials/certificates Authorization: B. Control users access on the network The other options are not correct matches because:
A list of rules that specifies which entities are permitted or denied access: This option is a definition of an access control list (ACL) Access Control List (ACL) Access Control List (ACL) is a list of rules that specifies which entities are permitted or denied access to a network resource such as a router , switch , firewall , server , etc . ACLs can be based on different criteria such as source and destination IP addresses , port numbers , protocol types , time of day , etc . ACLs can be applied to different interfaces or directions such as inbound or outbound . ACLs can be verified by using commands such as show access-lists , show ip access-lists , debug ip packet , etc . , not an AAA service.
Who can access the network based on credentials/certificates: This option is a definition of authentication, not authorization. Authorization is the process of granting or denying access to network resources based on the identity and privileges of a user or device, not based on credentials/certificates.
References: https://en.wikipedia.org/wiki/AAA_(computer_security)
https://www.cisco.com/c/en/us/support/docs/security-vpn/remote-authentication-dial-user-service-radius/13838-1

Explanation
A UXI (User Experience Insight) is a device that simulates user behavior and tests network performance from the user perspective. It can check different applications, such as HTTP, VOIP, or Office 365, and measure metrics such as latency, jitter, packet loss, and throughput.
References:https://www.arubanetworks.com/products/networking/user-experience-insight/

Explanation
The field in a Layer 3 IPv4 packet header that is used to mitigate Layer 3 route loops is Time To Live (TTL).
TTL is an 8-bit field that indicates the maximum number of hops that a packet can traverse before being discarded. TTL is set by the source device and decremented by one by each router that forwards the packet. If TTL reaches zero, the packet is dropped and an ICMP Internet Control Message Protocol (ICMP) Internet Control Message Protocol (ICMP) is a network protocol that provides error reporting and diagnostic functions for IP networks. ICMP is used to send messages such as echo requests and replies (ping), destination unreachable, time exceeded, parameter problem, source quench, redirect, etc. ICMP messages are encapsulated in IP datagrams and have a specific format that contains fields such as type, code, checksum, identifier, sequence number, data, etc. ICMP messages can be verified by using commands such as ping , traceroute , debug ip icmp , etc . message is sent back to the source device. TTL is used to mitigate Layer 3 route loops because it prevents packets from circulating indefinitely in a looped network topology. TTL also helps to conserve network resources and avoid congestion caused by looped packets.
The other options are not fields in a Layer 3 IPv4 packet header because:
Checksum: Checksum is a 16-bit field that is used to verify the integrity of the IP header. Checksum is calculated by the source device and verified by the destination device based on the values of all fields in the IP header. Checksum does not mitigate Layer 3 route loops because it does not limit the number of hops that a packet can traverse.
Protocol: Protocol is an 8-bit field that indicates the type of payload carried by the IP datagram. Protocol identifies the upper-layer protocol that uses IP for data transmission, such as TCP Transmission Control Protocol (TCP) Transmission Control Protocol (TCP) is a connection-oriented transport layer protocol that provides reliable, ordered, and error-checked delivery of data between applications on different devices . TCP uses a three-way handshake to establish a connection between two endpoints , and uses sequence numbers , acknowledgments , and windowing to ensure data delivery and flow control . TCP also uses mechanisms such as retransmission , congestion avoidance , and fast recovery to handle packet loss and congestion . TCP segments data into smaller units called segments , which are encapsulated in IP datagrams and have a specific format that contains fields such as source port , destination port , sequence number , acknowledgment number , header length , flags , window size , checksum , urgent pointer , options , data , etc . TCP segments can be verified by using commands such as telnet , ftp , ssh , debug ip tcp transactions , etc . , UDP User Datagram Protocol (UDP) User Datagram Protocol (UDP) is a connectionless transport layer protocol that provides

Explanation
When using an Aruba standalone AP, selecting “Native VLAN” for the Client VLAN Assignment means that the clients will get their IP addresses from the same subnet as the access point’s IP address. This is because the access point acts as a DHCP server for the clients in this mode.
References:https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/iap-dhcp/iap-dhc
